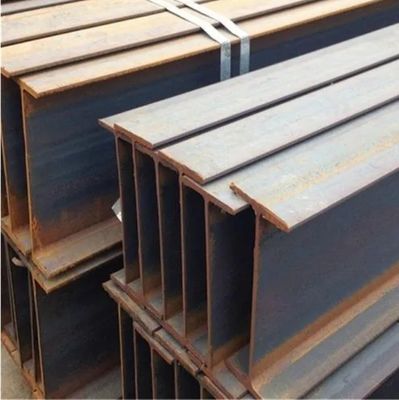

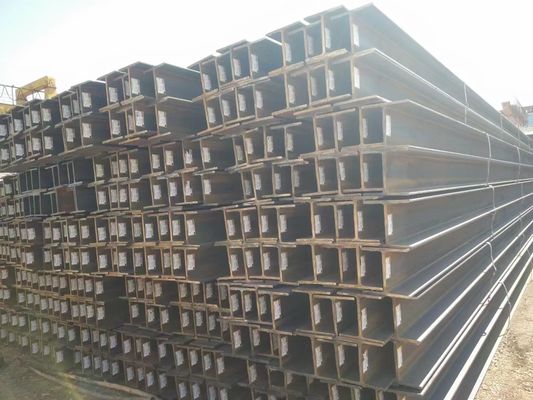

W21 X 122 Carbon Steel Profiles ASTM A572 Grade 50 Hot Rolled Steel Wide Flange Beam

W21 X 122 Carbon Steel Profiles ASTM A572 Grade 50 Hot Rolled Steel Wide Flange Beam
W21 X 122 Carbon Steel Profiles ASTM A572 Grade 50 Hot Rolled Steel Wide Flange Beam W21 X 122 Carbon Steel Profiles ASTM A572 Grade 50 Hot Rolled Steel Wide Flange Beam

Large Image :  W21 X 122 Carbon Steel Profiles ASTM A572 Grade 50 Hot Rolled Steel Wide Flange Beam

Product Details:
Place of Origin: China
Brand Name: PUXIANG, LAISTEEL
Certification: ISO,CE
Model Number: W150
Payment & Shipping Terms:
Minimum Order Quantity: 3 ton
Price: US$515-US$615
Delivery Time: 10-15 working days after receiveing advance payment
Payment Terms: T/T, T/T + L/C
Supply Ability: 500ton/month
Contact Now

W21 X 122 Carbon Steel Profiles ASTM A572 Grade 50 Hot Rolled Steel Wide Flange Beam

Description
Description: Wide Flange Beams Standard: ASTM A572，Gr.50
Size: W21 X 122 Length: 6m,12m Or As Required
Applications: Building Homes,Freeways,Overpasses Etc. Package: Standard Export Package
Highlight:

Carbon Steel Profiles ASTM

,

Carbon Steel Profiles A572

,

Hot Rolled wide flange beam

ASTM A572 Wide Flange Beams

We specialize in providing ASTM products, meeting internationally recognized quality and consistency standards. One of the most frequently-used materials we offer is ASTM A572 steel. A572 steel is available in five different grades: 42, 50, 55, 60, and 65. Each grade number indicates the yield strength of this high strength, low alloy steel.It's multiple favorable properties make it a staple for construction applications.


W21 X 122 Carbon Steel Profiles ASTM A572 Grade 50 Hot Rolled Steel Wide Flange Beam 0

Metric Imperial Depth     mm Width       mm Thickness mm Web Thickness mm
W100 x 19 W4 x 13 106 103 8.8 7.1
W130 x 24 W5 x– 19 127–131 127–128 9.1–10.9 6.1–6.9
W150 x 13–37 W6 x– 8.5–25 148–162 100–154 4.9–11.6 4.3–8.1
W200 x 15–100 W8 x– 10–67 200–229 100–210 5.2–23.7 4.3–14.5
W250 x 18–167 W10 x– 12–112 251–289 101–265 5.3–31.8 4.8–19.2
W310 x 21–342 W12 x– 14–230 303–382 101–328 5.7–52.6 5.1–32.6
W360 x 33–1086 W14 x– 22–730 349–569 127–454 8.5–125 5.8–78
W410 x 39–149 W16 x– 26–100 399–431 140–265 8.8–25 6.4–14.9
W460 x 52–286 W18 x– 35–192 450–517 152–291 10.8–44.4 7.6–24.4
W530 x 66–248 W21 x– 44–166 525–571 165–315 11.4–34.5 18.9–19
W610 x 82–262 W24 x– 55–176 599–641 178–327 12.8–34 10–19
W690 x 125–289 W27 x– 84–194 678–714 253–356 16.3–34 11.7–19
W760 x 134–350 W30 x– 90–235 750–795 264–382 15.5–38.1 11.9–21.1
W840 x 176–359 W33 x– 118–241 835–868 292–403 18.8–35.6 14–21.1
W920 x 201–446 W36 x– 135–302 903–933 304–423 20.1–42.7 15.2–24
W1000 x 222–493 W40 x– 149–327 970–1036 300–308 21.1–54.1 16–30


Chemical Composition of ASTM A572 Steel

Chemical Alloy Grade 42 Grade 50 Grade 55 Grade 60 Grade 65 ≥ ½” thick Grade 65 over ½” to 1 ¼” thick
C 0.21% 0.23% 0.25% 0.26% 0.26% 0.23%
Mn 1.35% 1.35% 1.35% 1.35% 1.35% 1.65%
P 0.03% 0.03% 0.03% 0.03% 0.03% 0.03%
S 0.03% 0.03% 0.03% 0.03% 0.03% 0.03%
Si 0.15-0.40% 0.15-0.40% 0.15-0.40% 0.40% 0.40% 0.40%



W21 X 122 Carbon Steel Profiles ASTM A572 Grade 50 Hot Rolled Steel Wide Flange Beam 1

W21 X 122 Carbon Steel Profiles ASTM A572 Grade 50 Hot Rolled Steel Wide Flange Beam 2
W21 X 122 Carbon Steel Profiles ASTM A572 Grade 50 Hot Rolled Steel Wide Flange Beam 3
