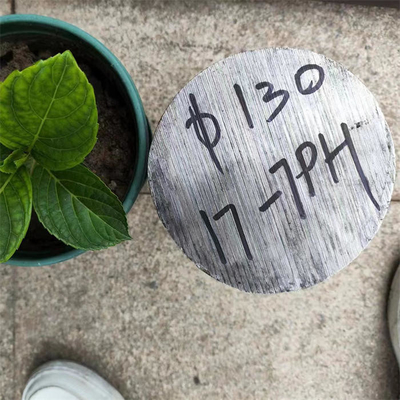

17-7PH Stainless Steel Round Rod UNS S17700 Polished Hot Rolled Grinding Rod
| MOQ: | 100KG |
| Price: | Price is negotiated based on the required specifications and quantity |
| Standard Packaging: | Standard export packaging, or packaging as required |
| Delivery Period: | 5-8 working days, depending on the parameters required for negotiation |
| Payment Method: | Payment Terms: Mainly T/T.. L/C, D/A, D/P, |
| Supply Capacity: | 5000 tons per month |
Detail Information
Place of Origin
China
Brand Name
Zhonggong Special Metallurgy
Certification
ISO Certificate
Model Number
17-7PH stainless steel
Density:
7.8 G/cm³
Specification And Size:
Cut According To Customer Requirements
Product Surface:
Black Or Bright
Material Type:
Austenitic Martensitic Precipitation Hardening Stainless Steel
Different Names:
UNS S17700、EN 1.4568、JIS SUS631、17-7PH
Strength:
High
Stress Cracking Resistance Capability:
High
Corrosion Resistance:
Good
Highlight:
17-7PH Stainless Steel Round Rod
,Stainless Steel Round Rod UNS S17700
,Hot Rolled Grinding Rod
Product Description
17-7PH Stainless Steel Round Rod UNS S17700 Polished Hot Rolled Grinding Rod
Product Specifications
| Attribute | Value |
|---|---|
| Density | 7.8 g/cm³ |
| Specification And Size | Cut According To Customer Requirements |
| Product Surface | Black Or Bright |
| Material type | Austenitic martensitic precipitation hardening stainless steel |
| Different Names | UNS S17700、EN 1.4568、JIS SUS631、17-7PH |
| Strength | High |
| Stress cracking resistance capability | High |
| Corrosion resistance | Good |
Product Description
High strength 17-7PH stainless steel round steel, UNS S17700 hot-rolled rod, grinding rod, polished rod.
Introduction to 17-7PH Stainless Steel Material
17-7PH is a stainless steel alloy with high strength, good elasticity, and corrosion resistance. Composed of iron, chromium, nickel, aluminum, and molybdenum with small amounts of carbon, copper, and silicon, this alloy offers excellent tensile properties, elastic recovery ability, and stability in high temperature and corrosive environments.
Chemical Composition
| C | Cr | Ni | Mn | Si | P | S | Al |
|---|---|---|---|---|---|---|---|
| ≤0.09% | 16.00-18.00% | 6.50-7.75% | ≤1.00% | ≤1.00% | ≤0.040% | ≤0.030% | 0.75-1.50% |
- Carbon (C): Below 0.09% to improve hardness and strength
- Chromium (Cr): 16.00-18.00% for enhanced corrosion resistance
- Nickel (Ni): 6.50-7.75% working with chromium for corrosion resistance
- Manganese (Mn): Below 1.00% to improve strength and hardness
- Aluminum (Al): 0.75-1.50% to enhance strength and hardness
Physical Properties
- Density: 7.8 g/cm³
- Melting point: 1390-1430 ℃
- Thermal conductivity: 16.3-20.9 W/(m * K)
- Tensile strength: Up to 1700 MPa
- Hardness: Up to 30 HRC
Key Advantages
- High Strength: Maintains excellent mechanical properties at high temperatures
- Corrosion Resistance: Performs well in acidic, alkaline, and chloride environments
- Machinability: Suitable for various cold and hot working processes
- Weldability: Excellent performance in conventional and specialized welding
Applications
Ideal for manufacturing high-strength components in:
- Aerospace and military applications
- Mechanical seals and pneumatic components
- Automotive emission systems
- Industrial heat exchangers
- Precision instruments and valves
