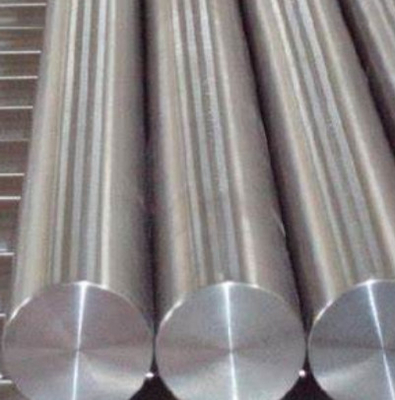

Nickel Inconel 601 Alloy Round Bar / Pipes / Plates For Extreme Environments
| MOQ: | 100KG |
| Price: | Price is negotiated based on the required specifications and quantity |
| Standard Packaging: | Standard export packaging, or packaging as required |
| Delivery Period: | 5-8 working days, depending on the parameters required for negotiation |
| Payment Method: | Payment Terms: Mainly T/T.. L/C, D/A, D/P, |
| Supply Capacity: | 5000 tons per month |
Detail Information
Place of Origin
China
Brand Name
Zhonggong Special Metallurgy
Certification
ISO Certificate
Model Number
Inconel601 Alloy
Name:
Nickel Inconel 601 Alloy
Chemical Composition:
Ni (72.0-78.0%), Cr (21.0-25.0%), Fe (5.0-10.0%), Mn (1.0% Max), Si (0.5% Max), C (0.1% Max), S (0.015% Max), P (0.015% Max)
Density:
8.08 G/cm³
Melting Point:
1400-1450°C
Tensile Strength:
690 MPa (100 Ksi)
Yield Strength:
350 MPa (51 Ksi)
Elongation:
35% (minimum)
Modulus Of Elasticity:
210 GPa
Thermal Conductivity:
11.2 W/m·K
Specific Heat Capacity:
0.43 J/g·K
Corrosion Resistance:
Excellent In Oxidation And Carburization
Highlight:
Nickel Inconel 601
,Inconel 601 Alloy
,Inconel 601 Round Bar
Product Description
Nickel Inconel 601 Alloy Round Bar / Pipes / Plates For Extreme Environments
Product Specifications
| Attribute | Value |
|---|---|
| Name | Nickel Inconel 601 Alloy |
| Chemical Composition | Ni (72.0-78.0%), Cr (21.0-25.0%), Fe (5.0-10.0%), Mn (1.0% max), Si (0.5% max), C (0.1% max), S (0.015% max), P (0.015% max) |
| Density | 8.08 g/cm³ |
| Melting Point | 1400-1450°C |
| Tensile Strength | 690 MPa (100 ksi) |
| Yield Strength | 350 MPa (51 ksi) |
| Elongation | 35% (minimum) |
| Modulus of Elasticity | 210 GPa |
| Thermal Conductivity | 11.2 W/m·K |
| Specific Heat Capacity | 0.43 J/g·K |
| Corrosion Resistance | Excellent in oxidation and carburization |
Product Description
High-Temp, Corrosion-Resistant Nickel-Chromium Material
Inconel 601 is a high-performance nickel-chromium-iron alloy engineered for extreme temperature and corrosive environments. This alloy offers exceptional resistance to oxidation and carburization, making it ideal for demanding industrial applications.
Key Features
- High Temperature Stability: Maintains strength and oxidation resistance up to 2200°F (1204°C)
- Superior Corrosion Resistance: Excellent protection against oxidation and carburization in harsh conditions
- Thermal Properties: 11.2 W/m·K thermal conductivity for effective heat distribution
- Mechanical Strength: Tensile strength of 690 MPa (100 ksi) with 35% minimum elongation
- Versatile Fabrication: Available in sheets, plates, bars, pipes, and wires for diverse applications
Typical Applications
- Gas turbine components (blades, combustion liners)
- Industrial furnace parts and heat exchangers
- Chemical processing equipment
Standard Specifications
- ASTM B166
- ASTM B167
- ASTM B168
Detailed Composition
| Element | Range | Typical Value |
|---|---|---|
| Nickel (Ni) | 72.0 - 78.0% | 75.0% |
| Chromium (Cr) | 21.0 - 25.0% | 23.0% |
| Iron (Fe) | 5.0 - 10.0% | 6.0% |
| Manganese (Mn) | ≤1.0% | 0.8% |
| Silicon (Si) | ≤0.5% | 0.4% |
| Carbon (C) | ≤0.1% | 0.05% |
| Sulfur (S) | ≤0.015% | 0.01% |
| Phosphorus (P) | ≤0.015% | 0.01% |
