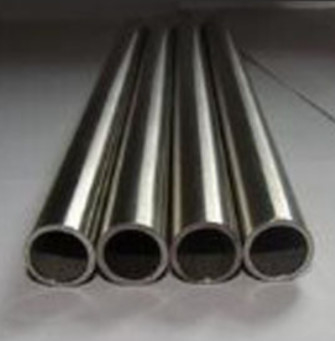

Incoloy 800 Alloy Nickel Iron Chromium Alloy For Industrial Heating Systems
| MOQ: | 100KG |
| Price: | Price is negotiated based on the required specifications and quantity |
| Standard Packaging: | Standard export packaging, or packaging as required |
| Delivery Period: | 5-8 working days, depending on the parameters required for negotiation |
| Payment Method: | Payment Terms: Mainly T/T.. L/C, D/A, D/P, |
| Supply Capacity: | 5000 tons per month |
Detail Information
Place of Origin
China
Brand Name
Zhonggong Special Metallurgy
Certification
ISO Certificate
Model Number
Incoloy 800 alloy
Name:
Incoloy 800 Alloy
Density:
7.94 G/cm³ (0.287 Lb/in³)
Melting Point:
1357-1385°C (2475-2525°F)
Tensile Strength:
520 MPa (75 Ksi) Minimum
Yield Strength (0.2% Offset):
210 MPa (30 Ksi) Minimum
Elongation:
30% Minimum
Hardness (HV):
160 Maximum (annealed Condition)
Thermal Conductivity:
11.5 W/m·K (80°C)
Specific Heat Capacity:
460 J/kg·K (20°C)
Electrical Resistivity:
1.08 µΩ·m (20°C)
Highlight:
Incoloy 800 Alloy
,Incoloy Alloy 800
,Nickel Iron Chromium Alloy
Product Description
Incoloy 800 Alloy Nickel Iron Chromium Alloy For Industrial Heating Systems
Product Specifications
| Attribute | Value |
|---|---|
| Name | Incoloy 800 Alloy |
| Density | 7.94 g/cm³ (0.287 lb/in³) |
| Melting Point | 1357-1385°C (2475-2525°F) |
| Tensile Strength | 520 MPa (75 ksi) minimum |
| Yield Strength (0.2% offset) | 210 MPa (30 ksi) minimum |
| Elongation | 30% minimum |
| Hardness (HV) | 160 maximum (annealed condition) |
| Thermal Conductivity | 11.5 W/m·K (80°C) |
| Specific Heat Capacity | 460 J/kg·K (20°C) |
| Electrical Resistivity | 1.08 µΩ·m (20°C) |
Product Description
Incoloy 800 Alloy: High-Performance Nickel-Iron-Chromium Alloy For High-Temperature Applications
Incoloy 800 is a widely used nickel-iron-chromium alloy characterized by its excellent strength and high temperature resistance. It offers exceptional resistance to oxidation, carburization, and sulfidation at elevated temperatures. The alloy maintains a stable structure during prolonged exposure to high temperatures, making it ideal for applications in industrial furnaces, petrochemical processing, and power generation.
Key Features
- High Temperature Resistance: With a melting point of 1357-1385°C (2475-2525°F), Incoloy 800 exhibits superior strength and stability at elevated temperatures.
- Oxidation and Corrosion Resistance: Provides excellent resistance to oxidation, carburization, and sulfidation in high-temperature environments, ensuring prolonged service life.
- Mechanical Properties: Offers high tensile strength (minimum 520 MPa) and good creep rupture strength, maintaining structural integrity under stress.
- Chemical Composition: Primarily composed of nickel (30-35%), iron (39.5% min), and chromium (19-23%), with additions of copper, manganese, carbon, and silicon for enhanced properties.
- Applications: Widely used in industrial heating systems, heat-treating equipment, chemical processing plants, and thermal processing units where reliability under extreme conditions is critical.
Chemical Composition
Nickel (Ni): 30-35%
Iron (Fe): 39.5% min
Chromium (Cr): 19-23%
Copper (Cu): 0.75% max
Manganese (Mn): 1.5% max
Carbon (C): 0.10% max
Silicon (Si): 1.0% max
Sulfur (S): 0.015% max
